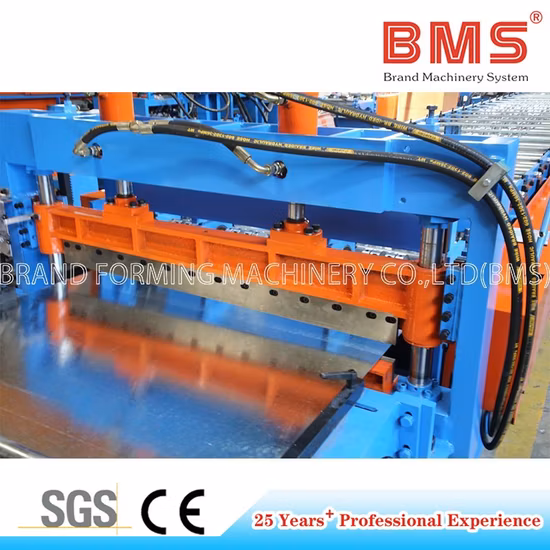

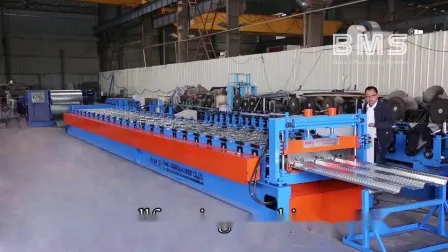

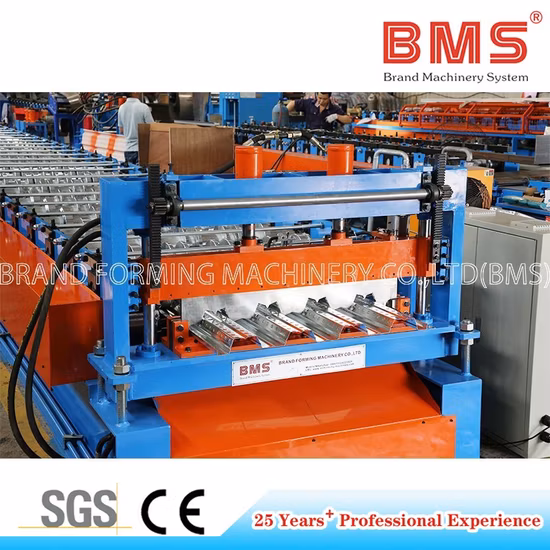

High Quality Floor Deck Cold Roll Forming Machine

Overview

Basic Info.

Model NO.	Customized
Certification	CE, ISO
Condition	New
Customized	Customized
Usage	Roof, Wall, Floor
Transmission Method	Hydraulic Pressure
PLC	Delta
Encoder	Omron
Suitable Material	Gi/Gl
Profile Drawing	Customized
Driving Motor	Lichao
Hydraulic Motor	Lichao
Speed	15-20m/Min
Suitable Thickness	0.6-1.2mm
Transport Package	Nude
Trademark	HN
Origin	China
HS Code	84552210
Production Capacity	50 Sets/Month

Packaging & Delivery

Package Size 200.00cm * 100.00cm * 50.00cm Package Gross Weight 2.000kg

Product Description

High quality floor deck cold roll forming machine Product Description

Roll Forming Unit	Roller Station	25
	Driving Motor	2 x 11KW
	Shaft Diameter	90mm Solid
	Shaft Material	45# Hard Steel
	Roller Material	GCr15
	Under Frame	400H-Beam
	Sidewall Thickness	20MM
	Transmission	1.5 Inch Chain
	Feeding Device	1 Set
Cutting Unit	Cutting Type	Hydraulic Stop TO Cut
	Hydraulic Pump Power	5.5KW
	Cutting Die Material	Cr12Mov
	Hydraulic Oil	46# Abrade Oil
Control Unit	Control Method	PLC
	Length Control	Encoder
	Operation	Touch Screen
	Language	Chinese & English
Auxilliary Device	---	8T Manual Decoiler
	---	Exit Rack

Detailed Photos

Certifications

Packaging & Shipping

After Sales Service1. The warranty is 24 months after the client receives the machine.Within The 24months, we will courier the replacement parts to the client free of charge 2.We offer technical support for the entire life of our machines3. We can send our technicians to install and train the workers in the clients' factories with extra costCompany Profile

FAQ

Q1. What are the main key points for selecting right machines?

A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price
not the final point.
Good quality is for long-term business cooperation.
Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production
usage, machine speed, then machine specification will be some different.
Q3. What's your standard trade terms ?
A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for
competitive ocean freight.
Q4. How about the quality control?
A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.
Q5. How about the after-sale service?
A5: We provide 18 months free warranty and free technical support for the whole life of any machine. During warranty period, if
parts still broken, we can send the new ones freely.
Q6. If I am in Beijing,Shanghai or Guangzhou,how to visit your company?
A6: 1) Beiing South Statioin to Cangzhou West Station (by fast train 1 hour).
2) Shanghai Hongqiao to Cangzhou West (4.5 hours)
3) Guangzhou Airport to Tianjin ,then Tianjin to Cangzhou West
